Small 100L 200L 300L 400L Beer Brite Tank

TEKBREW Beer Brite Tank

1. Tek Brite Tank/Brite Beer Tank/Maturation Tank/Storage Tank is widely used for Homebrew, Bar, Brewpub, Restaurant, Microbrewery and small Craft Beer Brewing company,

    Capacity from 50L to 200HL.

Type:  Single layer, Cooling jacketed,  Insulated double layer BBT, Vertical, Stackable, Horizontal Type

2. The Brite is complete new, unused and high quality configurations.

3. The tank is completely made of SUS304, 316 or red copper as requirement.

4. 100% TIG welding with pure argon gas shield.

5. Interior Finish: 0.4~0.6μm/Mirror Polishing/pickling and passivating

6. The tank dimension can be adjustable according to the room space.

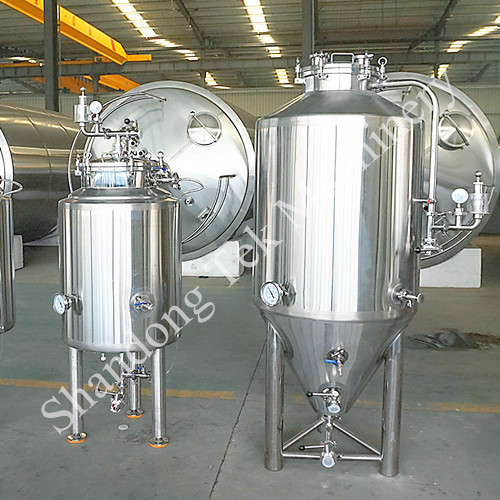

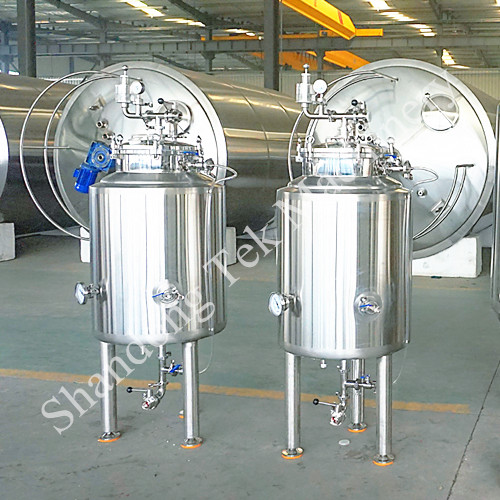

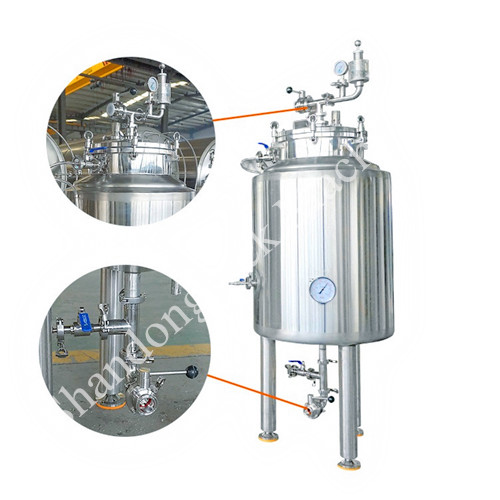

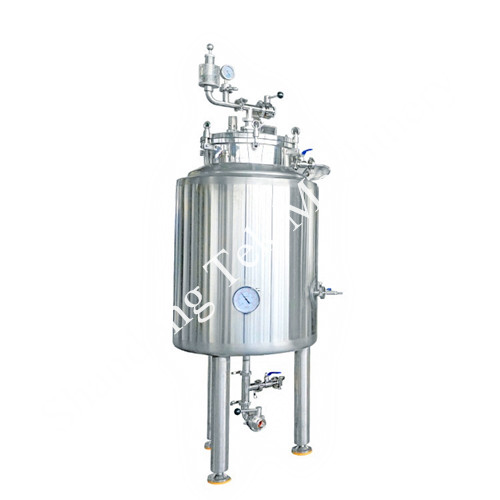

Details of  Mini Brite/bright Beer Tank

Beer brite maturation tank

Total capacity: with 20%-25% headspace

Dome top and bottom

Interior Shell: SUS304, T 3.0mm;

Exterior Shell: SUS304, T 2.0mm 2B

Insulation: PU, T 50-80mm

100% TIG welding with pure argon gas shield

Interior Finish: to 0.4~0.6μm/ Mirror polishing/pickling and passivating

Cooling Jacket: On both cone and cylinder parts , can be separate cooling zones

Top mounted manhole

Relief/Vacuum valve/PVRV Valve

Thermometer Thermowell with high accuracy temperature sensor: PT100

Beer Sample valve

Level Tube

CO2 Carbonation Stone

Bung apparatus/Release Valve with pressure gauge

Test Pressure: 0.3Mpa, Working pressure: 0.15-0.2Mpa.

Drainage with butterfly valve

CIP arm with 360° spraying ball

Tank complete with fittings, valves, and all parts.

Optional:

Copper Shell

Other requirements

Dimension design

Additional blow off pipework.

Regular Specification Table for Mini Craft Beer Brites

More details, please contact us
